Descrição
Detection range : 2 … 800 mm
Detection range min. : 20 … 40 mm
Adjustment range : 40 … 800 mm
Reference target : standard white, 100 mm x 100 mm
Light source : LED
Light type : modulated visible red light
Operating voltage : 10 … 30 V DC
Interface type : IO-Link ( via C = pin 4 )

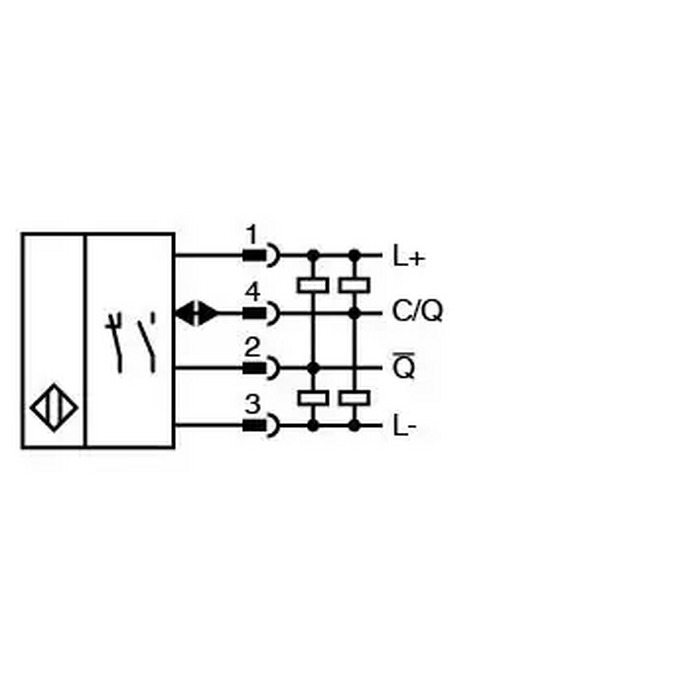

Switching type : The switching type of the sensor is adjustable. The default setting is: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link /Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on
Signal output : 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching frequency : 1000 Hz
Degree of protection : IP67 / IP69 / IP69K
Connection : 300 mm fixed cable with M12 x 1, 4-pin connector
