OBT200-18GM60-E5-V1 | SENSOR FOTOELET. DIFUSO, M18, PNP, LIGHT/DARK ON, 10…30VDC, SAIDA CONECTOR M12(4 PINOS)

Descrição

Detection range : 0 … 200 mm
Reference target : standard white 200 mm x 200 mm
Light source : IRED , 880 nm
Light type : infrared
Operating voltage : 10 … 30 V DC , class 2
Switching type : light/dark on electrically switchable
Signal output : PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage : max. 30 V DC
Switching current : max. 100 mA
Switching frequency : 500 Hz
Ambient temperature : -25 … 55 °C (-13 … 131 °F)
Degree of protection : IP67

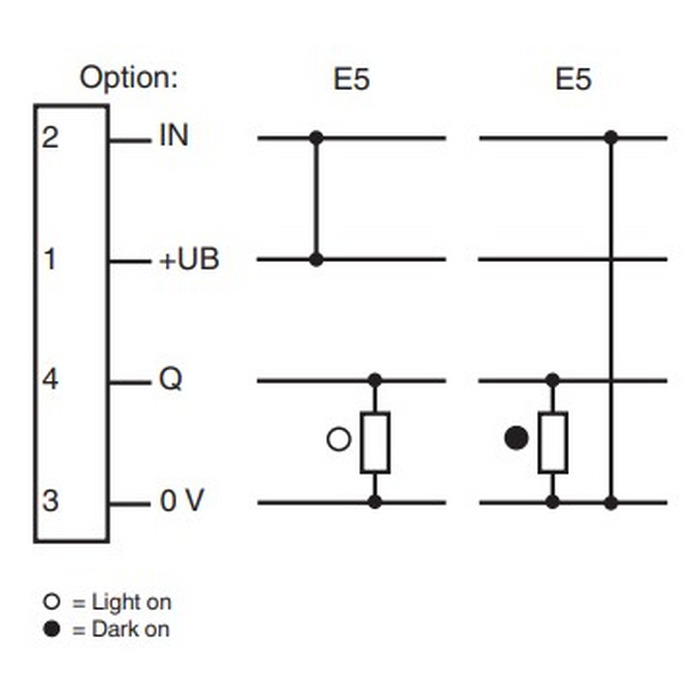

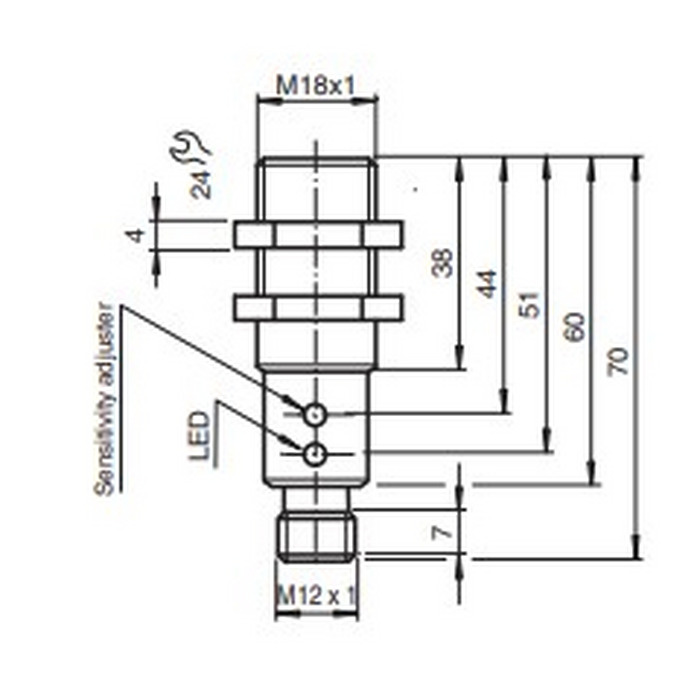

Connection : 4-pin, M12 x 1 connector
